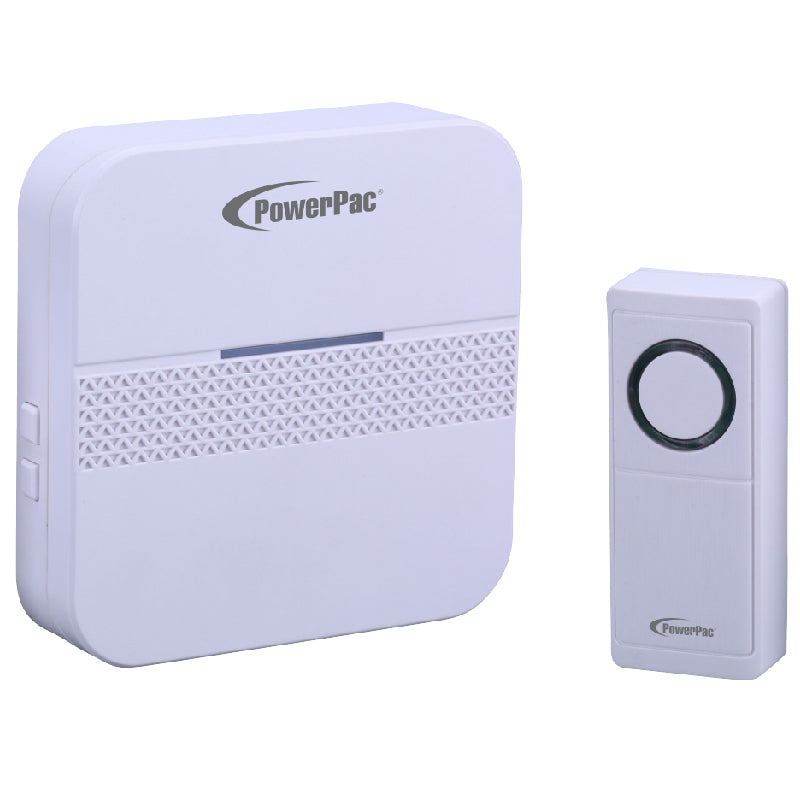

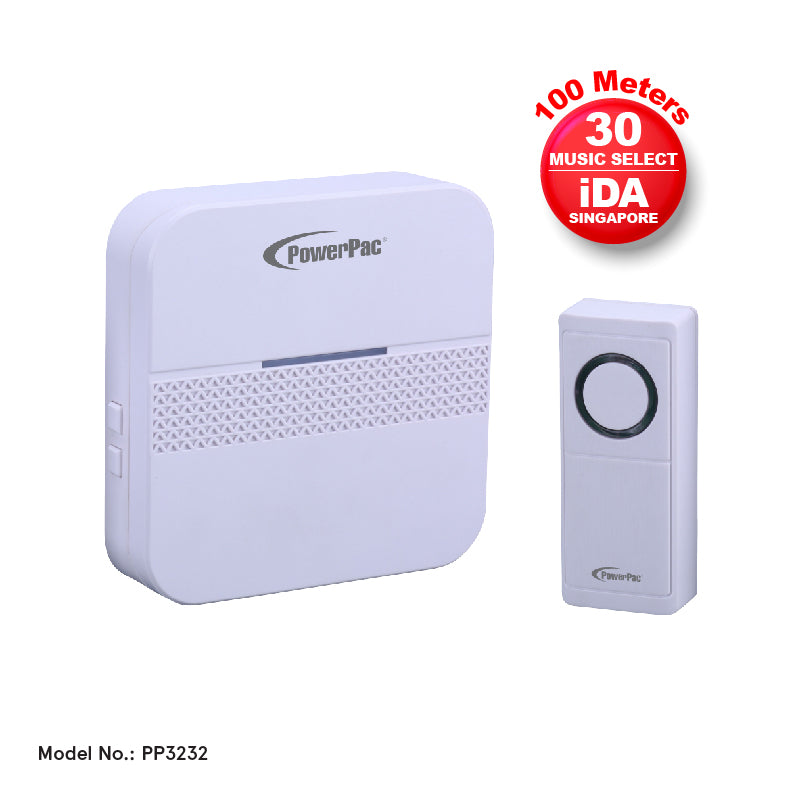

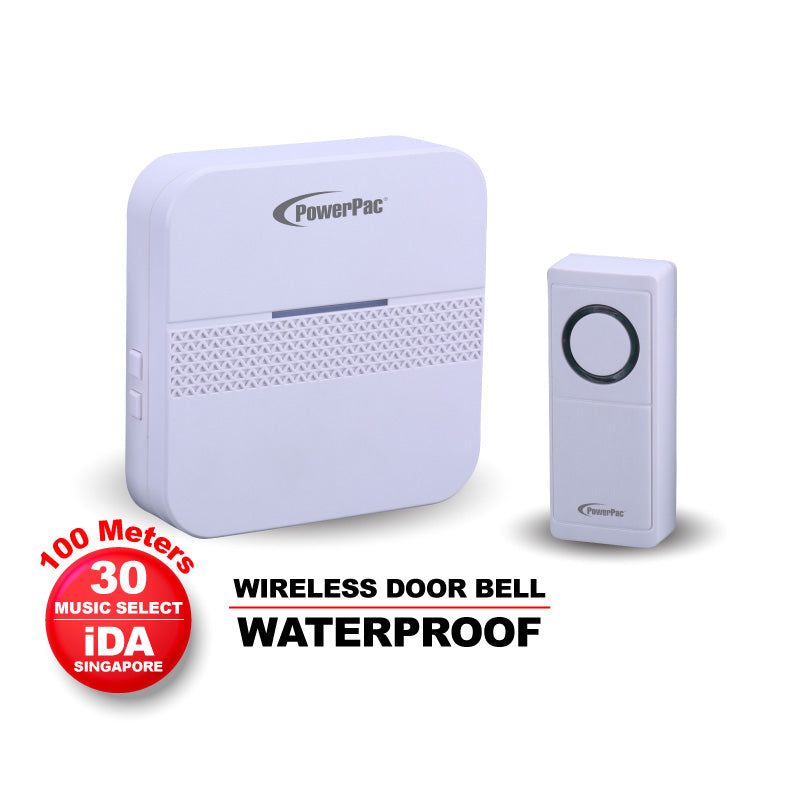

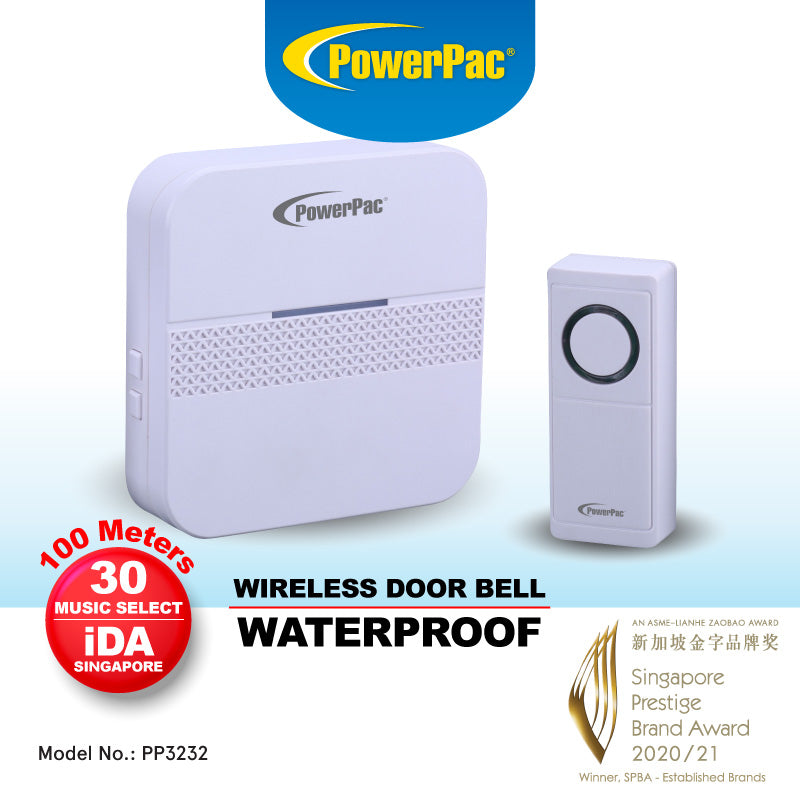

The PowerPac PP3232 Water-Proof Wireless Door Bell, Caller Bell, Caregiver Bell with Volume Adjust & Tone Selector comprises a Transmitter and a Receiver, both of which are provided. It requires no drilling, no broadband or internet connection required and is completely portable.
The Transmitter consists of a push button enclosed in a rectangular box which should be installed outside the home or office beside the door and is secured by adhesive tape. It contains a 3V CR2032 battery which is provided. The Transmitter has an Ingress Protection (IP) rating of 44 which protects against contact with live or moving parts inside it by tools, wires, or such objects of thickness greater than 1 mm; or, of small solid foreign bodies (diameter greater than 1 mm). Water splashed against it from any direction shall have no harmful effect. Thus it is suitable to be used as a Caregiver Bell, where the Receiver may have to get water splashed onto it.
The Receiver is a stand-alone device and need not be attached to the wall near the door. In fact, it can be brought anywhere within a radius of 100 metres and will emit sounds when the push button on the Transmitter is pressed. It requires three AA batteries which are not included.
The PowerPac PP3232 Water-Proof Wireless Door Bell, Caller Bell, Caregiver Bell with Volume Adjust & Tone Selector is ideal for homes, offices, guest rooms in hotels, etc. and allows the occupants to be notified if someone requires entry into the premises, thus allowing them freedom to be engaged in other activities. It is suitable to be placed at reception desks where clients who arrive can notify the staff of their arrival. It is especially suitable to be placed in places where it would likely get splashed with water on occasions.
Specification
- Easy to install and blends in with your interior decoration.
- No electrical wires, Wi-Fi or internet connection.
- Ideal for homes, offices, factories, guest rooms in hotels, etc.
- Low power consumption.
- IP44 rating of Transmitter. Water splashed against it from any direction shall have no harmful effect.
- Ideal for homes, offices, shops, factories, guest rooms in hotels, etc.
Installation
-
Remove the Battery Compartment of the Receiver and insert three 1.5V AA batteries (not included). Replace the Battery Compartment.
- Remove the Battery Compartment of the Transmitter and pull out the plastic tape from the 3V CR2032 battery (included). Replace the Battery Compartment.
- Fix the Transmitter next to the door using the adhesive tape.
- Avoid locations near sources of heat or electromagnetism.
Operating Guide:
- Press & hold the Push Button of the Transmitter until the Receiver sounds.
- The Transmitter and Receiver are now in sync and have been paired successfully.
- (optional) Press the Select Button at the back of the Receiver to change amongst the 18 melodies.
- Press the Volume Button of the Receiver to increase or decrease the volume of the Door Bell.
- Dimensions - (Receiver) : 9.6 cm (L) x 2.3 cm (W) x 9.7 cm (H)
- Dimensions - (Transmitter) : 3.0 cm (L) x 1.7 cm (W) x 7.1 cm (H)
- Batteries - (Receiver) : three 1.5V AA batteries (not included)
- Batteries - (Transmitter) : one 3V CR2032 battery (included)
- The Product Comes With 24 Months Warranty (With Proof of Purchase)
User Manual
User manual for PP3232 (updated by 15 Aug 2024)
